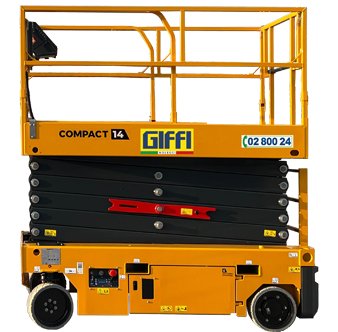

14 m electric scissor lift rental
For your work at height you can rent a pantograph aerial platform, from Giffi Noleggi you will also find the 14-metre scissor lift, a sturdy, compact, reliable equipment with great working autonomy. With this electric lift you can work in total safety in the field of construction, logistics or events, thanks to the proportional controls you will have excellent maneuverability even in confined spaces.
Technical data
Working height 13.85 m
Platform height 11.85 m
Maximum basket capacity 350 kgPlatform
length 2.31 m Platform
length with extension
3.23 m Extension length 0.92 m
Platform width 1.2 m Platform
height at rest (railings folded down) 2.08 m
Platform height at rest (with railings ) 2.5 m
Overall platform width 1.2 m
Platform length at rest 2.49 m
Wheelbase 1.86 m
Ground clearance 13 cm
Ground clearance with side skirts 2.3 cm
Travel speed 0.9 - 2.7 km/h
Maximum travel height 11.85 m
Maximum negotiable gradient 23%
Max operating inclination 2°/3°
Descent/ascent time 61 s / 50 s
Minimum turning radius - outside 2.5 m
Wheels - non-marking 15x5
Batteries 24 V - 340 Ah (C20)
Hydraulic tank capacity 25 l
Weight 3 175 kg
Basket dimensions extended 3.23 x 1.2 m
Maximum basket capacity - internal 350 kg
Work in safety
The 14 m electric scissor lift platform ensures you work in total safety thanks to the anti-tip device and a manual system for emergency descent.
No Maintenance
Renting from Giffi Noleggi means having new vehicles available and constantly subjected to checks and maintenance by our staff.
Suggested applications
The electric scissor aerial platform is an easy to use equipment, it can be used in different sectors such as construction, logistics and industry and in the preparation of trade fairs
