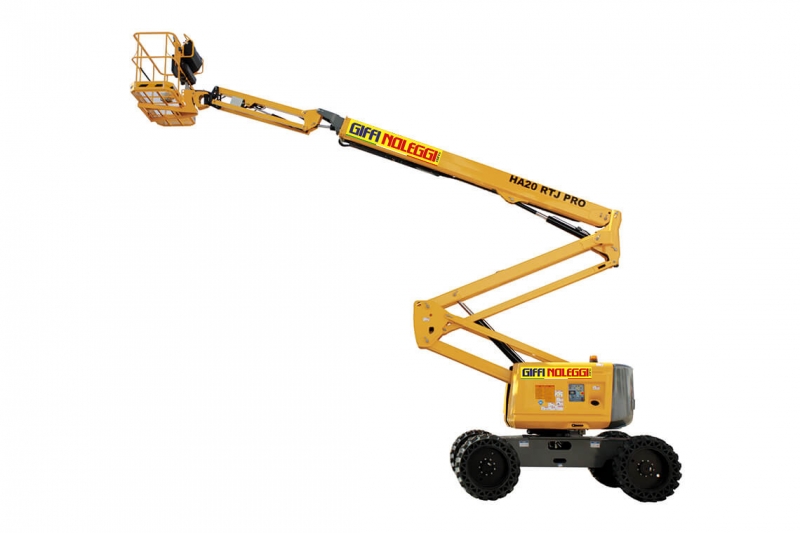

The new 20m Haulotte self-propelled machine can reach a working height of 20m and reach 12.2m laterally. The continuous rotation of the turret of 360°, the simultaneous proportional controls and the extension speed allow reaching the maximum elevation in a few seconds The self-propelled 20 is the perfect vehicle even on uneven ground, thanks to the 4-wheel drive and the wheel lock independent it can tackle even the most inaccessible terrains, thanks to the powerful engine it can overcome a maximum gradient of 45%.
Working height 20.6 m
Floor height 18.6 m
Maximum side outreach 12.2 m
Maximum load in basket 230 kgPlatform
dimension 1.83 x 0.80 m
Length 8.8 m
Width 2.42 m
Stowed height 2.51 m
Vertical excursion Jib 140 ° (+ 60 °/-80 °)
Rotation angle of the turret 360° continuous
Height from the ground 42cmTravel
speed 0.5 - 5 km/h
Maximum negotiable slope 45%
Ext. turning circle 3.75m
Diesel power 36.5 kW - 49.5 hp
Weight 9600 kg
Renting allows you to get rid of all those costs involved in the maintenance of a vehicle.
Giffi Noleggi always offers you new vehicles controlled by qualified personnel. This means saving time and money
This diesel articulated self-propelled platform allows you to work outdoors even on rough terrain, this vehicle is, therefore, ideal for construction, maintenance and restoration, installation, etc. and industry.
